Professional supplier of ceramic fiber cloth, foam ceramic filter, fireproof cloth, high-precision industrial ceramics, casting ceramics and refractory materials
Refractory (ceramic) fiber textiles
Product variety:
Refractory (ceramic) fiber rope

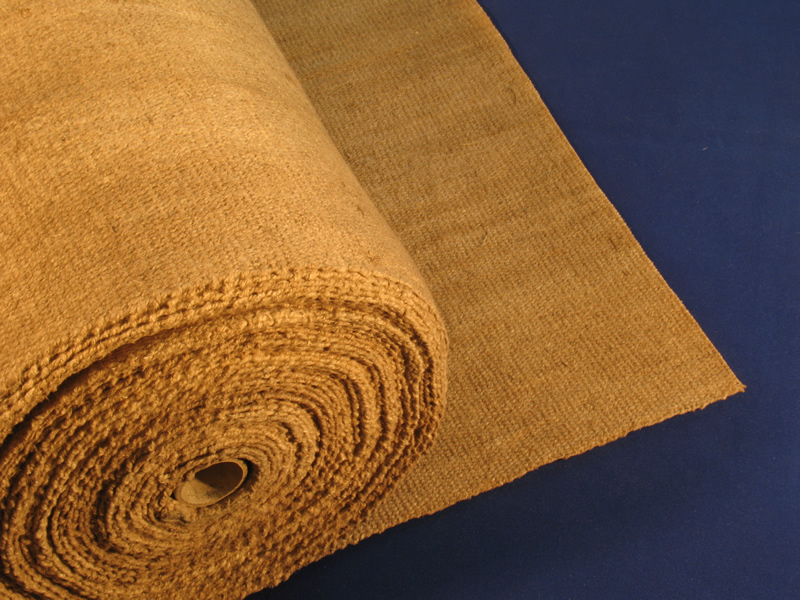

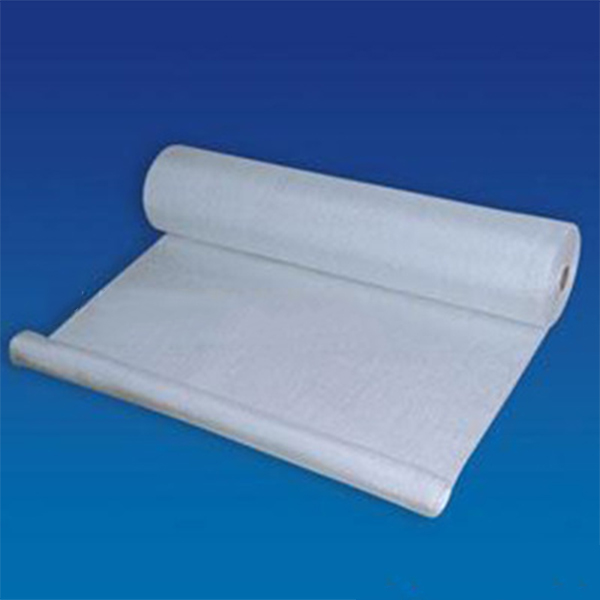

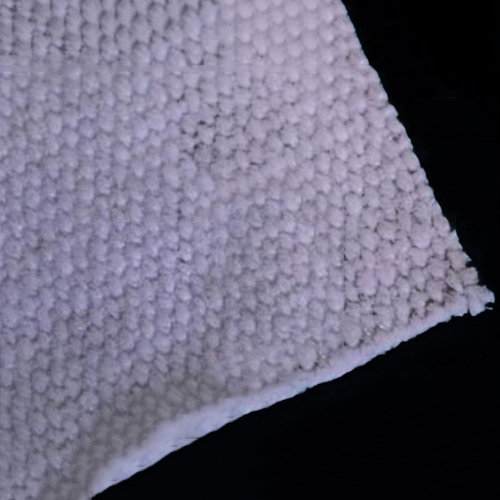

Refractory (ceramic) fiber cloth (ordinary type/sintered type/surface coating type)
Refractory (ceramic) fiber tape (ordinary type/sintered type)
Refractory (ceramic) fiber packing
Refractory (ceramic) fiber sleeve
Product features:
High temperature resistance, low thermal conductivity, thermal shock resistance, and low heat capacity;
Good high-temperature insulation performance and long service life;
Has the ability to resist corrosion of non-ferrous metals such as aluminum and zinc by melting contact;
Has good bottom temperature and high temperature strength;
Non toxic, harmless, and has no adverse effects on the environment;
Convenient construction and installation;
Application scope:
Shield welding sparks, electric sparks splashing,
Safety protection fence for front steel blocking of steelmaking electric furnace and blast furnace;
Various kilns, high-temperature pipelines, and containers are insulated and insulated;
Furnace doors, valves, flange seals, fire doors and fire rolling shutter materials, high-temperature furnace door sensitive curtain curtains;
Engine and instrument insulation, fire-resistant cable wrapping materials, high-temperature fire-resistant materials;
Thermal insulation covering fabric, high-temperature expansion joint filler, and flue lining;
High temperature resistant labor protection products, fire-resistant clothing, high-temperature filtration, sound absorption, and other alternative asbestos applications.
Refractory ceramic fiber textiles (reference value)
rope | cloth | belt | packing | bushing | |
FZS | FZB | FZD | FZG | FZT | |
Classification temperature (℃) | 1200 | 1200 | 1200 | 1200 | 1200 |
operation temperature (℃) | 650(Glass fiber reinforced type) 1000(Alloy wire reinforced type) | ||||
unit weight(Kg/m3) | 350~600 | 350~600 | 350~600 | 350~600 | 350~600 |
tensile strength（Kgf/mm） | >1.2~2.8 | radial76Kgf/5cm zonal37Kgf/5cm
| >1.2 | >1.2 | |
External dimensions（mm）
|
| width 1000～1500
thickness 1.5～5
| width 10～150
thickness 1.1～10
| 5×5~50×50 | inside diameter 10～50 wall thickness 2mm/3mm
|
